OHX(D)
- Gladde afwerking voetzijde
- Gebezemd of handglad afwerking rugzijde
- VBIONEN® mogelijk als afwerking aan de rugzijde
- Gelijke wanddikte van onder tot boven 20, 25 of 30 cm
- Voetlengte flexibel
- Tweedelige hoekelementen
- Naspansysteem op aanvraag
- Spanslot op aanvraag in te bouwen
- Grotere overlast mogelijk op aanvraag
- Grondkering
- Scheidingsmuur
- Parkeerterrein
- Los- laadkaai
- Terrasbouw
- Hallenbouw
- Garagebouw
- OHX: Enkelkerend, overlast 1000 kg/m2
- OHXD: Dubbelkerend, overlast 1000 kg/m2
- grotere overlast op aanvraag
- Verkrijgbare hoogtes: 1,05m tot en met 4,55m
- Verkrijgbare lengte: 2,00m
- Ook mogelijkheid tot maatwerk
OMSCHRIJVING

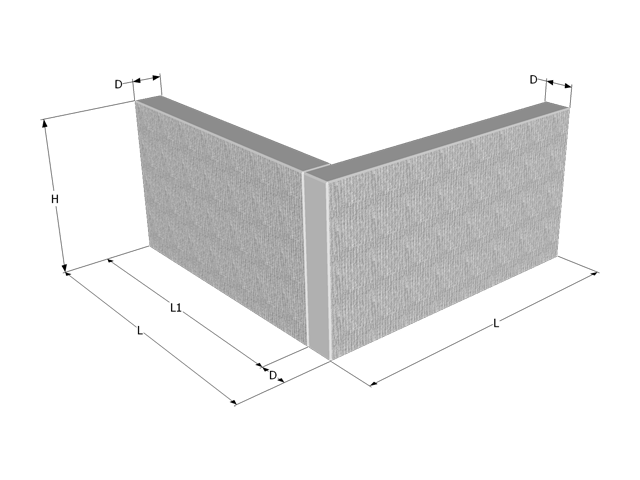

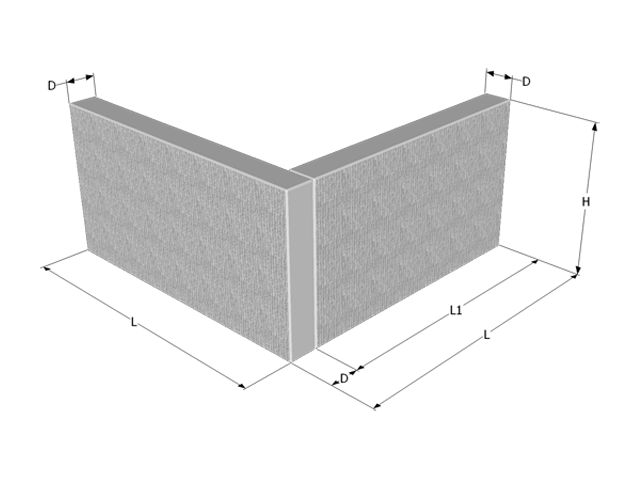

De OHX(D) keerwanden zijn de hoekoplossingen die horen bij de OL(K)(X)(D) keerwanden. De OHX keerwanden zijn enkelkerend aan de voetzijde te belasten. De OHXD daarentegen is dubbelkerend te belasten. De hoeken worden uit 2 delen vervaardigd en worden tegen een standaard OL(K)(X)(D) geplaatst. Deze 2 delen vormen samen een binnenhoek van 90°.
De OHX(D) keerwanden hebben een gelijke wanddikte van 20cm, 25cm en 30cm, afhankelijk van de hoogte. De OHX(D) wanden worden in hoogtes van 1,05m tot 4,55m gemaakt. De standaard lengte bedraagt 2,00m x 2,00m.
De basisafwerking is gebezemd of handglad aan de rugzijde en industrieel glad aan de voetzijde. Het is ook mogelijk om onze VBIONEN® te bevestigen aan de rugzijde van dit element.
| Type | Afwerking voetzijde | Afwerking rugzijde | Hijsvoorziening | Verbinding | Soort beton | Overlast voetzijde | Belasting rugzijde | Opbouw hoek |
|---|---|---|---|---|---|---|---|---|
| OHX | industrieel glad | gebezemd / handglad / VBIONEN® | kogelkopanker (DEHA) | koud | C 55/67 | 1000 kg/m2 | 0 kg/m2 | 2-delig |
| OHXD | industrieel glad | gebezemd / handglad / VBIONEN® | kogelkopanker (DEHA) | koud | C 55/67 | 1000 kg/m2 | 1000 kg/m2 | 2-delig |
Technische details
| OHX | OHXD | H cm | B cm | L x L cm | L1 cm | D cm | Gewicht | Hijsmateriaal |
|---|---|---|---|---|---|---|---|---|
  |
|
105 | 60 | 200/200 | 180 | 20 | 2784 | 2 x 2,5T |
|
|
130 | 85 | 200/200 | 180 | 20 | 3744 | 2 x 2,5T |
|
|
155 | 85 | 200/200 | 180 | 20 | 4224 | 2 x 2,5T |
|
|
180 | 115 | 200/200 | 180 | 20 | 5280 | 2 x 2,5T |
|
|
205 | 115 | 200/200 | 180 | 20 | 5760 | 2 x 2,5T |
|
|
230 | 135 | 200/200 | 180 | 20 | 6624 | 2 x 2,5T |
|
|
255 | 135 | 200/200 | 180 | 20 | 7104 | 3 x 2,5T |
|
|
280 | 160 | 200/200 | 180 | 20 | 8064 | 3 x 2,5T |
|
|
305 | 160 | 200/200 | 180 | 20 | 8544 | 3 x 2,5T |
| OHX | OHXD | H cm | B cm | L x L cm | L1 cm | D cm | Gewicht | Hijsmateriaal |
|---|---|---|---|---|---|---|---|---|
|
|
105 | 60 | 200/200 | 180 | 25 | 3360 | 2 x 2,5T |
|
|
130 | 85 | 200/200 | 180 | 25 | 4560 | 2 x 2,5T |
|
|
155 | 85 | 200/200 | 180 | 25 | 5160 | 2 x 2,5T |
|
|
180 | 115 | 200/200 | 180 | 25 | 6480 | 2 x 2,5T |
|
|
205 | 115 | 200/200 | 180 | 25 | 7080 | 2 x 2,5T |
|
|
230 | 135 | 200/200 | 180 | 25 | 8160 | 2 x 2,5T |
|
|
255 | 135 | 200/200 | 180 | 25 | 8760 | 3 x 2,5T |
|
|
280 | 160 | 200/200 | 180 | 25 | 9960 | 3 x 5T |
|
|
305 | 160 | 200/200 | 180 | 25 | 10560 | 3 x 5T |
|
|
330 | 185 | 200/200 | 180 | 25 | 11760 | 3 x 5T |
|
|
355 | 185 | 200/200 | 180 | 25 | 12360 | 2 x 5T |
|
|
380 | 200 | 200/200 | 180 | 25 | 14040 | 2 x 5T |
|
|
405 | 200 | 200/200 | 180 | 25 | 14640 | 2 x 5T |
| OHX | OHXD | H cm | B cm | L x L cm | L1 cm | D cm | Gewicht | Hijsmateriaal |
|---|---|---|---|---|---|---|---|---|
|
|
105 | 60 | 200/200 | 180 | 30 | 3888 | 2 x 2,5T |
|
|
130 | 85 | 200/200 | 180 | 30 | 5328 | 2 x 2,5T |
|
|
155 | 85 | 200/200 | 180 | 30 | 6048 | 2 x 2,5T |
|
|
180 | 115 | 200/200 | 180 | 30 | 7632 | 2 x 2,5T |
|
|
205 | 115 | 200/200 | 180 | 30 | 8352 | 2 x 2,5T |
|
|
230 | 135 | 200/200 | 180 | 30 | 9648 | 2 x 2,5T |
|
|
255 | 135 | 200/200 | 180 | 30 | 10368 | 3 x 2,5T |
|
|
280 | 160 | 200/200 | 180 | 30 | 11808 | 3 x 5T |
|
|
305 | 160 | 200/200 | 180 | 30 | 12528 | 3 x 5T |
|
|
330 | 185 | 200/200 | 180 | 30 | 13968 | 3 x 5T |
|
|
355 | 185 | 200/200 | 180 | 30 | 14688 | 3 x 5T |
|
|
380 | 200 | 200/200 | 180 | 30 | 16704 | 3 x 5T |
|
|
405 | 200 | 200/200 | 180 | 30 | 17424 | 3 x 5T |
|
|
430 | 200 | 200/200 | 180 | 30 | 18144 | 3 x 5T |
|
|
455 | 200 | 200/200 | 180 | 30 | 18864 | 3 x 5T |

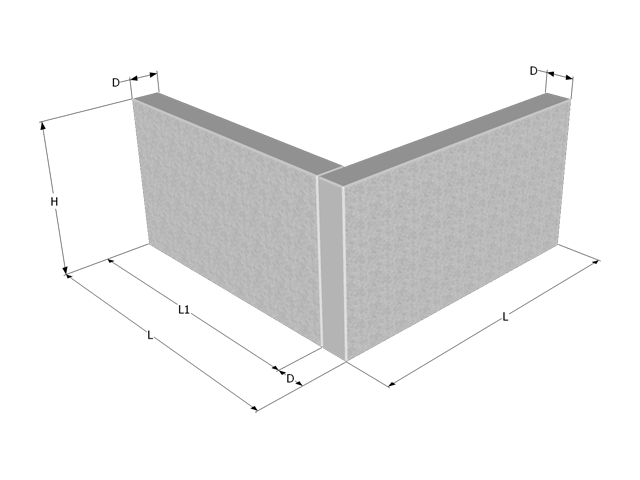

| OHX handglad |
OHXD handglad |
H cm | B cm | L x L cm | L1 cm | D cm | Gewicht | Hijsmateriaal |
|---|---|---|---|---|---|---|---|---|
|
|
105 | 60 | 200/200 | 180 | 20 | 2784 | 2 x 2,5T |
|
|
130 | 85 | 200/200 | 180 | 20 | 3744 | 2 x 2,5T |
|
|
155 | 85 | 200/200 | 180 | 20 | 4224 | 2 x 2,5T |
|
|
180 | 115 | 200/200 | 180 | 20 | 5280 | 2 x 2,5T |
|
|
205 | 115 | 200/200 | 180 | 20 | 5760 | 2 x 2,5T |
|
|
230 | 135 | 200/200 | 180 | 20 | 6624 | 2 x 2,5T |
|
|
255 | 135 | 200/200 | 180 | 20 | 7104 | 3 x 2,5T |
|
|
280 | 160 | 200/200 | 180 | 20 | 8064 | 3 x 2,5T |
|
|
305 | 160 | 200/200 | 180 | 20 | 8544 | 3 x 2,5T |
| OHX handglad |
OHXD handglad |
H cm | B cm | L x L cm | L1 cm | D cm | Gewicht | Hijsmateriaal |
|---|---|---|---|---|---|---|---|---|
|
|
105 | 60 | 200/200 | 180 | 25 | 3360 | 2 x 2,5T |
|
|
130 | 85 | 200/200 | 180 | 25 | 4560 | 2 x 2,5T |
|
|
155 | 85 | 200/200 | 180 | 25 | 5160 | 2 x 2,5T |
|
|
180 | 115 | 200/200 | 180 | 25 | 6480 | 2 x 2,5T |
|
|
205 | 115 | 200/200 | 180 | 25 | 7080 | 2 x 2,5T |
|
|
230 | 135 | 200/200 | 180 | 25 | 8160 | 2 x 2,5T |
|
|
255 | 135 | 200/200 | 180 | 25 | 8760 | 3 x 2,5T |
|
|
280 | 160 | 200/200 | 180 | 25 | 9960 | 3 x 5T |
|
|
305 | 160 | 200/200 | 180 | 25 | 10560 | 3 x 5T |
|
|
330 | 185 | 200/200 | 180 | 25 | 11760 | 3 x 5T |
|
|
355 | 185 | 200/200 | 180 | 25 | 12360 | 2 x 5T |
|
|
380 | 200 | 200/200 | 180 | 25 | 14040 | 2 x 5T |
|
|
405 | 200 | 200/200 | 180 | 25 | 14640 | 2 x 5T |
| OHX handglad |
OHXD handglad |
H cm | B cm | L x L cm | L1 cm | D cm | Gewicht | Hijsmateriaal |
|---|---|---|---|---|---|---|---|---|
|
|
105 | 60 | 200/200 | 180 | 30 | 3888 | 2 x 2,5T |
|
|
130 | 85 | 200/200 | 180 | 30 | 5328 | 2 x 2,5T |
|
|
155 | 85 | 200/200 | 180 | 30 | 6048 | 2 x 2,5T |
|
|
180 | 115 | 200/200 | 180 | 30 | 7632 | 2 x 2,5T |
|
|
205 | 115 | 200/200 | 180 | 30 | 8352 | 2 x 2,5T |
|
|
230 | 135 | 200/200 | 180 | 30 | 9648 | 2 x 2,5T |
|
|
255 | 135 | 200/200 | 180 | 30 | 10368 | 3 x 2,5T |
|
|
280 | 160 | 200/200 | 180 | 30 | 11808 | 3 x 5T |
|
|
305 | 160 | 200/200 | 180 | 30 | 12528 | 3 x 5T |
|
|
330 | 185 | 200/200 | 180 | 30 | 13968 | 3 x 5T |
|
|
355 | 185 | 200/200 | 180 | 30 | 14688 | 3 x 5T |
|
|
380 | 200 | 200/200 | 180 | 30 | 16704 | 3 x 5T |
|
|
405 | 200 | 200/200 | 180 | 30 | 17424 | 3 x 5T |
|
|
430 | 200 | 200/200 | 180 | 30 | 18144 | 3 x 5T |
|
|
455 | 200 | 200/200 | 180 | 30 | 18864 | 3 x 5T |
| OHX | OHXD | H cm | B cm | L x L cm | L1 cm | D cm | Gewicht | Hijsmateriaal |
|---|---|---|---|---|---|---|---|---|
|
|
105 | 60 | 200/200 | 180 | 20 | 2784 | 2 x 2,5T |
|
|
130 | 85 | 200/200 | 180 | 20 | 3744 | 2 x 2,5T |
|
|
155 | 85 | 200/200 | 180 | 20 | 4224 | 2 x 2,5T |
|
|
180 | 115 | 200/200 | 180 | 20 | 5280 | 2 x 2,5T |
|
|
205 | 115 | 200/200 | 180 | 20 | 5760 | 2 x 2,5T |
|
|
230 | 135 | 200/200 | 180 | 20 | 6624 | 2 x 2,5T |
|
|
255 | 135 | 200/200 | 180 | 20 | 7104 | 3 x 2,5T |
|
|
280 | 160 | 200/200 | 180 | 20 | 8064 | 3 x 2,5T |
|
|
305 | 160 | 200/200 | 180 | 20 | 8544 | 3 x 2,5T |
| OHX | OHXD | H cm | B cm | L x L cm | L1 cm | D cm | Gewicht | Hijsmateriaal |
|---|---|---|---|---|---|---|---|---|
|
|
105 | 60 | 200/200 | 180 | 25 | 3360 | 2 x 2,5T |
|
|
130 | 85 | 200/200 | 180 | 25 | 4560 | 2 x 2,5T |
|
|
155 | 85 | 200/200 | 180 | 25 | 5160 | 2 x 2,5T |
|
|
180 | 115 | 200/200 | 180 | 25 | 6480 | 2 x 2,5T |
|
|
205 | 115 | 200/200 | 180 | 25 | 7080 | 2 x 2,5T |
|
|
230 | 135 | 200/200 | 180 | 25 | 8160 | 2 x 2,5T |
|
|
255 | 135 | 200/200 | 180 | 25 | 8760 | 3 x 2,5T |
|
|
280 | 160 | 200/200 | 180 | 25 | 9960 | 3 x 5T |
|
|
305 | 160 | 200/200 | 180 | 25 | 10560 | 3 x 5T |
|
|
330 | 185 | 200/200 | 180 | 25 | 11760 | 3 x 5T |
|
|
355 | 185 | 200/200 | 180 | 25 | 12360 | 2 x 5T |
|
|
380 | 200 | 200/200 | 180 | 25 | 14040 | 2 x 5T |
|
|
405 | 200 | 200/200 | 180 | 25 | 14640 | 2 x 5T |
| OHX | OHXD | H cm | B cm | L x L cm | L1 cm | D cm | Gewicht | Hijsmateriaal |
|---|---|---|---|---|---|---|---|---|
|
|
105 | 60 | 200/200 | 180 | 30 | 3888 | 2 x 2,5T |
|
|
130 | 85 | 200/200 | 180 | 30 | 5328 | 2 x 2,5T |
|
|
155 | 85 | 200/200 | 180 | 30 | 6048 | 2 x 2,5T |
|
|
180 | 115 | 200/200 | 180 | 30 | 7632 | 2 x 2,5T |
|
|
205 | 115 | 200/200 | 180 | 30 | 8352 | 2 x 2,5T |
|
|
230 | 135 | 200/200 | 180 | 30 | 9648 | 2 x 2,5T |
|
|
255 | 135 | 200/200 | 180 | 30 | 10368 | 3 x 2,5T |
|
|
280 | 160 | 200/200 | 180 | 30 | 11808 | 3 x 5T |
|
|
305 | 160 | 200/200 | 180 | 30 | 12528 | 3 x 5T |
|
|
330 | 185 | 200/200 | 180 | 30 | 13968 | 3 x 5T |
|
|
355 | 185 | 200/200 | 180 | 30 | 14688 | 3 x 5T |
|
|
380 | 200 | 200/200 | 180 | 30 | 16704 | 3 x 5T |
|
|
405 | 200 | 200/200 | 180 | 30 | 17424 | 3 x 5T |
|
|
430 | 200 | 200/200 | 180 | 30 | 18144 | 3 x 5T |
|
|
455 | 200 | 200/200 | 180 | 30 | 18864 | 3 x 5T |
| OHX handglad |
OHXD handglad |
H cm | B cm | L x L cm | L1 cm | D cm | Gewicht | Hijsmateriaal |
|---|---|---|---|---|---|---|---|---|
|
|
105 | 60 | 200/200 | 180 | 20 | 2784 | 2 x 2,5T |
|
|
130 | 85 | 200/200 | 180 | 20 | 3744 | 2 x 2,5T |
|
|
155 | 85 | 200/200 | 180 | 20 | 4224 | 2 x 2,5T |
|
|
180 | 115 | 200/200 | 180 | 20 | 5280 | 2 x 2,5T |
|
|
205 | 115 | 200/200 | 180 | 20 | 5760 | 2 x 2,5T |
|
|
230 | 135 | 200/200 | 180 | 20 | 6624 | 2 x 2,5T |
|
|
255 | 135 | 200/200 | 180 | 20 | 7104 | 3 x 2,5T |
|
|
280 | 160 | 200/200 | 180 | 20 | 8064 | 3 x 2,5T |
|
|
305 | 160 | 200/200 | 180 | 20 | 8544 | 3 x 2,5T |
| OHX handglad |
OHXD handglad |
H cm | B cm | L x L cm | L1 cm | D cm | Gewicht | Hijsmateriaal |
|---|---|---|---|---|---|---|---|---|
|
|
105 | 60 | 200/200 | 180 | 25 | 3360 | 2 x 2,5T |
|
|
130 | 85 | 200/200 | 180 | 25 | 4560 | 2 x 2,5T |
|
|
155 | 85 | 200/200 | 180 | 25 | 5160 | 2 x 2,5T |
|
|
180 | 115 | 200/200 | 180 | 25 | 6480 | 2 x 2,5T |
|
|
205 | 115 | 200/200 | 180 | 25 | 7080 | 2 x 2,5T |
|
|
230 | 135 | 200/200 | 180 | 25 | 8160 | 2 x 2,5T |
|
|
255 | 135 | 200/200 | 180 | 25 | 8760 | 3 x 2,5T |
|
|
280 | 160 | 200/200 | 180 | 25 | 9960 | 3 x 5T |
|
|
305 | 160 | 200/200 | 180 | 25 | 10560 | 3 x 5T |
|
|
330 | 185 | 200/200 | 180 | 25 | 11760 | 3 x 5T |
|
|
355 | 185 | 200/200 | 180 | 25 | 12360 | 2 x 5T |
|
|
380 | 200 | 200/200 | 180 | 25 | 14040 | 2 x 5T |
|
|
405 | 200 | 200/200 | 180 | 25 | 14640 | 2 x 5T |
| OHX handglad |
OHXD handglad |
H cm | B cm | L x L cm | L1 cm | D cm | Gewicht | Hijsmateriaal |
|---|---|---|---|---|---|---|---|---|
|
|
105 | 60 | 200/200 | 180 | 30 | 3888 | 2 x 2,5T |
|
|
130 | 85 | 200/200 | 180 | 30 | 5328 | 2 x 2,5T |
|
|
155 | 85 | 200/200 | 180 | 30 | 6048 | 2 x 2,5T |
|
|
180 | 115 | 200/200 | 180 | 30 | 7632 | 2 x 2,5T |
|
|
205 | 115 | 200/200 | 180 | 30 | 8352 | 2 x 2,5T |
|
|
230 | 135 | 200/200 | 180 | 30 | 9648 | 2 x 2,5T |
|
|
255 | 135 | 200/200 | 180 | 30 | 10368 | 3 x 2,5T |
|
|
280 | 160 | 200/200 | 180 | 30 | 11808 | 3 x 5T |
|
|
305 | 160 | 200/200 | 180 | 30 | 12528 | 3 x 5T |
|
|
330 | 185 | 200/200 | 180 | 30 | 13968 | 3 x 5T |
|
|
355 | 185 | 200/200 | 180 | 30 | 14688 | 3 x 5T |
|
|
380 | 200 | 200/200 | 180 | 30 | 16704 | 3 x 5T |
|
|
405 | 200 | 200/200 | 180 | 30 | 17424 | 3 x 5T |
|
|
430 | 200 | 200/200 | 180 | 30 | 18144 | 3 x 5T |
|
|
455 | 200 | 200/200 | 180 | 30 | 18864 | 3 x 5T |
Detail randafwerking OHX
Belastingschema OHX
Detail bovenrand
Detail zijrand koud
Kaai:
(aanvulling + mobiele last)
Talud: (aanvulling + talud)
Hellingshoek α is max. 35°
Detail randafwerking OHXD
Belastingschema OHXD
Detail bovenrand
Detail zijrand koud
Kaai:
(aanvulling + mobiele last)
Talud: (aanvulling + talud)
Hellingshoek α is max. 35°
